Designing a Secure Multi-VPC Architecture with AWS Transit Gateway and IGW

-

 Preface

In an AWS cloud Proof of Concept (PoC), Transit Gateway (TGW) and Internet Gateway (IGW) are key to secure, scalable and efficient communication between different VPCs and external networks. Transit Gateway (TGW) is a central routing hub where multiple VPCs can communicate without the complexity of multiple VPC peering connections. It simplifies network management, scales and enforces security policies through route tables to control traffic between connected VPCs. Internet Gateway (IGW) is required for outbound and inbound internet access for resources in public subnets. It allows public facing workloads like web servers and APIs to talk to external services while keeping private subnets secure through NAT Gateways. Together TGW and IGW provide a structured and controlled networking environment, so critical workloads are secure, isolated when needed and connected efficiently in a multi-VPC architecture.





POC


The proposed Proof of Concept (PoC) focuses on establishing secure and controlled communication between multiple VPCs using AWS Transit Gateway (TGW) and Internet Gateway (IGW) in the US-EAST-1 region. The architecture consists of three VPCs: GTPL_NOC (10.1.1.0/24), GTPL_SOC (10.1.2.0/24), and GTPL_ADM (10.1.3.0/24), with TGW (GTPL_TGW_US-EAST-1) acting as the central routing hub. GTPL_NOC and GTPL_ADM are connected via TGW, enabling seamless communication, while GTPL_SOC remains isolated with no TGW attachment to enforce strict security policies. An Internet Gateway (GTPL_IGW_US-EAST-1) is attached to GTPL_NOC to facilitate external connectivity, allowing public-facing resources in the GTPL_NOC Public Subnet (10.1.1.0/28) to access the internet. Private subnets in GTPL_ADM (10.1.3.0/28) can leverage a NAT Gateway in GTPL_NOC for outbound internet access without exposing internal resources. By implementing TGW route tables and security policies, the setup ensures efficient inter-VPC communication while maintaining strict isolation for GTPL_SOC. This PoC serves as a scalable network foundation, enabling controlled access to internet services while securing sensitive workloads in a multi-VPC environment.


             AWS network architecture Diagram as per POC


Implementation steps of POC

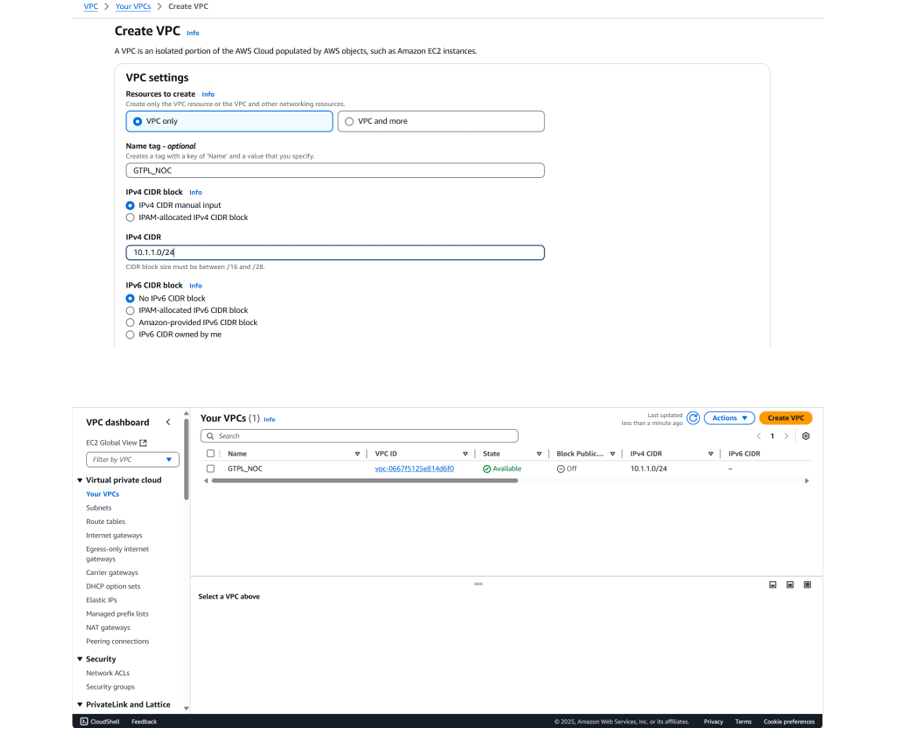

Step-1: Create VPC for GTPL_NOC


Step-2: Create VPC for GTPL_SOC

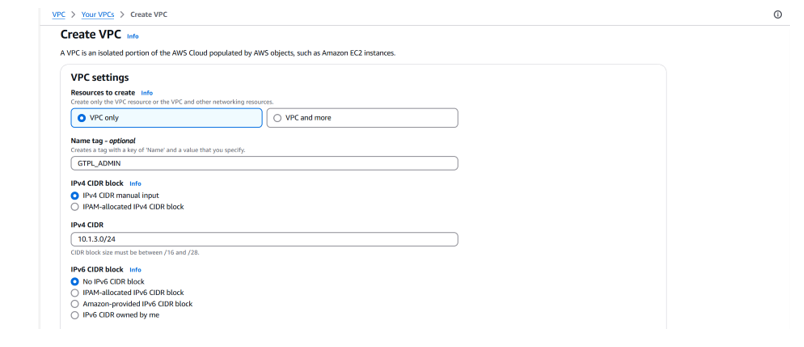

Step-3: Create VPC for GTPL_ADMIN



Step-4: Create transit Gateway of GTPL_TGW


Step-5: Create Public subnet for GTPL_NOC



Step-6: Create Public subnet for GTPL_SOC



Step-7: Create Private subnet for GTPL_ADMIN



Step-8 Attach GTPL_NOC_VPC with TGW

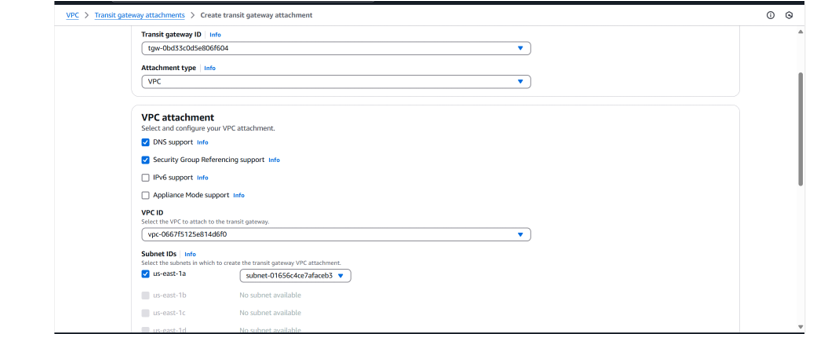

Step-9 Attach GTPL_ADMIN_VPC with TGW

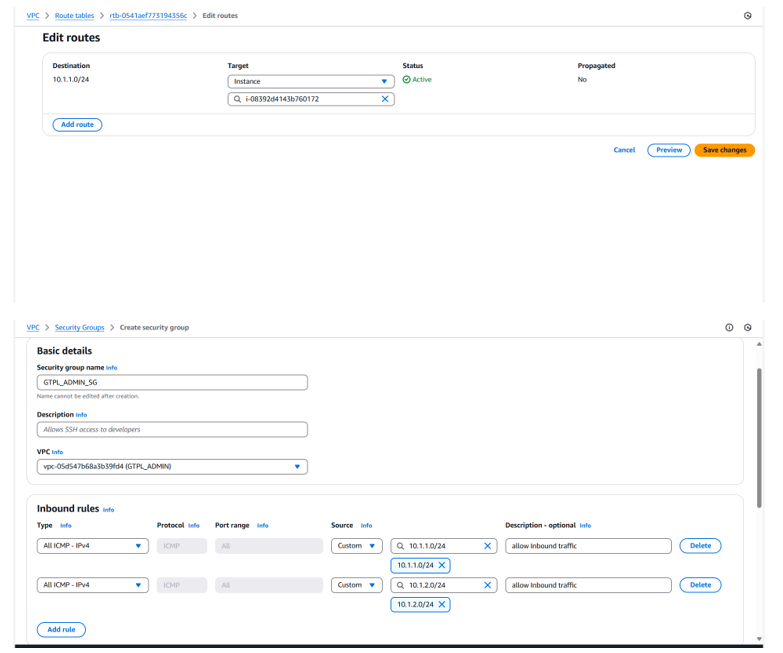

STEP-10 create security group with inbound and outbound traffic rule of GTPL_NOC



STEP-11 Associate GTPL_NOC Security Group with GTPL_ADMIN_VPC


STEP-12 Create VM /EC2 instance for GTPL_NOC

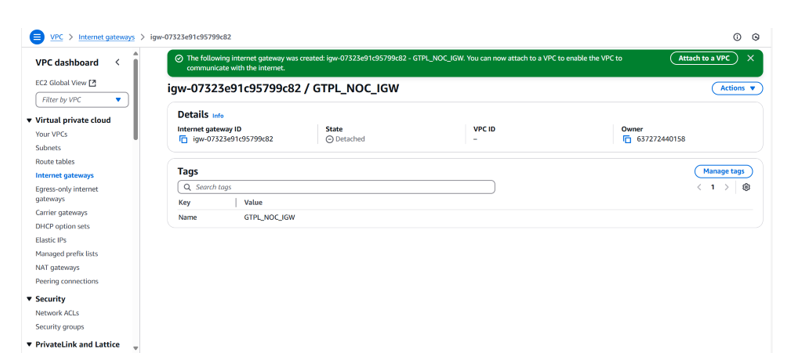

STEP-13 Create GTPL_NOC_IGW for outbound traffic towards internet





STEP-14 Select GTPL_NOC VPC and attached with GTPL_NOC_IGW





Step-15 Associate GTPL_NOC_VPC with GTPL_ADMIN_SG



wrap-up:


✅ GTPL_NOC → IGW for Internet Access
❌ GTPL_SOC → No IGW, Fully Isolated
❌ GTPL_ADM → No IGW, Use NAT if needed


1. Previous all steps need to be followed from Admin department towards NOC department except IGW.

2. Here, SOC department remains isolated.

3. As per requirement wise need to apply Inbound and outbound traffic policy then create security group appropriately.

4. As per Policy and POC wise VPC need to attach with security group.

5. Virtual Machine/workload/EC2 instance need to attach with VPC.

6. with the help of ICMP reachability we can cross-verify architecture wise POC.
